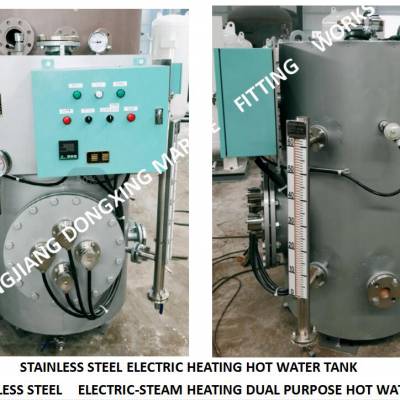

Stainless steel electric heating hot water tank

stainless steel steam electric heating dual purpose hot water tank

船用不锈钢电加热热水柜-船用不锈钢蒸汽电加热两用热水柜

船用不锈钢蒸电两用热水柜ELECTRIC-STEAM CALORIFIER

型号 model : ZDR0.5

        水柜容积 tank’s capacity : 0.5m3

        水柜充填介质 medium : fresh-water

        工作压力 working pressure : 0.4Mpa

主要材质 Main Material：Q345R

        电加热功率 electrical heating capacity :18 kW

        蒸汽加热面积 areas of steam heating : 1.0m2

        蒸汽耗量 Steam comsuption:120kg/h

        热水循环型号/数量 pump’s model and quantity: 1WZ-0.9  2 pes./set

        水泵参数 pump’s character:

排量capacity/1.8m3/h , 压头pressure lift :0.25MPa ,电机功率

power of motor: 1.5kW

电源 electrical source :380V,50Hz

        整套热水柜附有柜体，压力表，温度表，温度控制器，蒸汽温度调节阀，安全阀，液位控制器,水泵以及电气控制箱等

       Completed Calorifier must contain body, pressure gauge, thermometer , temperature controller, steam adjusting valve, level controller , safety valve,  pump and electrical control case etc.
